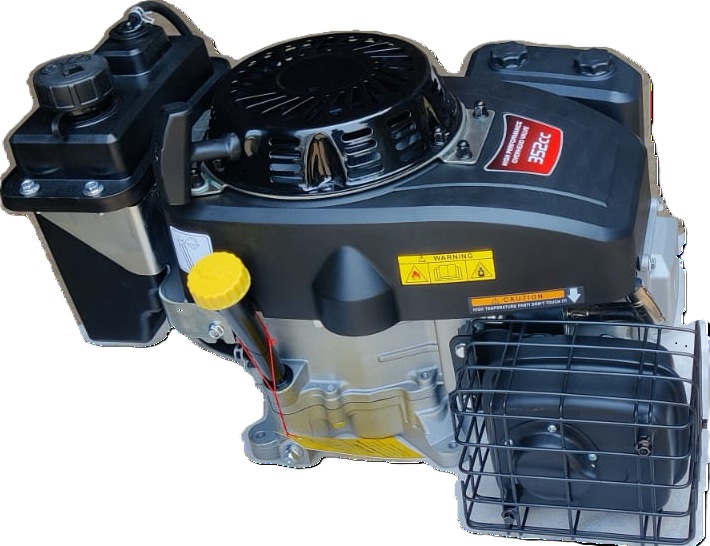

HK-352 Vertical Shaft
Specification
Diagram
MORE DETAILS
Specification
Engine Type | Air cooled, 4-stroke OHV |
Bore X Stroke(mm) | 86×62 |
Displacement (cc) | 352 |
Cylinder | Single |
Net Power (kw/rpm)/HP (Max) | 7.2/3600/10 |
Net Torque (n.m/rpm) | 21/2500 |
PTO shaft rotation | Anti-clockwise |
Starting system | Electric start(Optional of recoil available) |
Ignition system | Transistor-contactless |
Lubrication system | Pressure+ splash |
Compression ratio | 8.7:1 |
Fuel tank capacity (L) | NA |
Engine oil capacity (L) | 0.8Ltr |
Net Weight (Kg) | 24 |
Dimension (mm) | 404x376x388 |
